Hermetic automatic sliding door
Enhanced air tightness and dust protection
The air-tight sliding door provides enhanced air tightness and dust protection for operating rooms and sterile rooms.
It offers convenient & unobstructive access for medical staff and essential sanitary security.
FEATURES
- Leakage rate under 20 Pa less than 1m³/h
- Ergonomic design, smooth surfaces, dust-proof cover
- Panels filled with highly durable HPL laminate
- X-ray protective radiation proof panels with lead lining
- Contactless opening controls and a wide range of finishes
| Passage width : | 700 mm to 1 800 mm depending on configuration |
| Maximum passage height : | Up to 2 500 mm |
| Mechanism dimensions : | H 278 x 201 mm with dust-proof covers H 185 x 201 mm without dust-proof covers |
| Maximum panels weight : | 150 kg |
| Installation : | Surface-mounted |
| Frame : | Aluminium |
| Fillings/claddings : | HPL laminate, DecoChoc melamine, lacquered aluminum |
Custom-made products and numerous options available; contact us!
SALES
Our teams assess your needs and constraints. They provide guidance to determine the appropriate solutions for each project.
Our prices include supply and installation.
SERVICES
We support you throughout the entire lifecycle of your installation: commissioning, repair, renovation, and maintenance.
| CE – EN 61000-6-3/2 – EN 60335-1/-2-103 –EN 16005 |
| NF EN 1026 Air permeability in positive and negative pressure |
| PV CSTB BV13-262 |
| Origine France Garantie : sliding ranges |
Customize your automatic door
The performance of this air-tight sliding door is based on meticulous design, the use of materials resistant to cleaning and decontamination, and the integration of advanced technologies. Its robust structure is designed to resist deformation under pressure or vacuum, ensuring optimal tightness.
- Sealing system with specific tubular gaskets blocking contaminant passage
- Hermetic closure in a smooth motion controlled by a guiding ramp

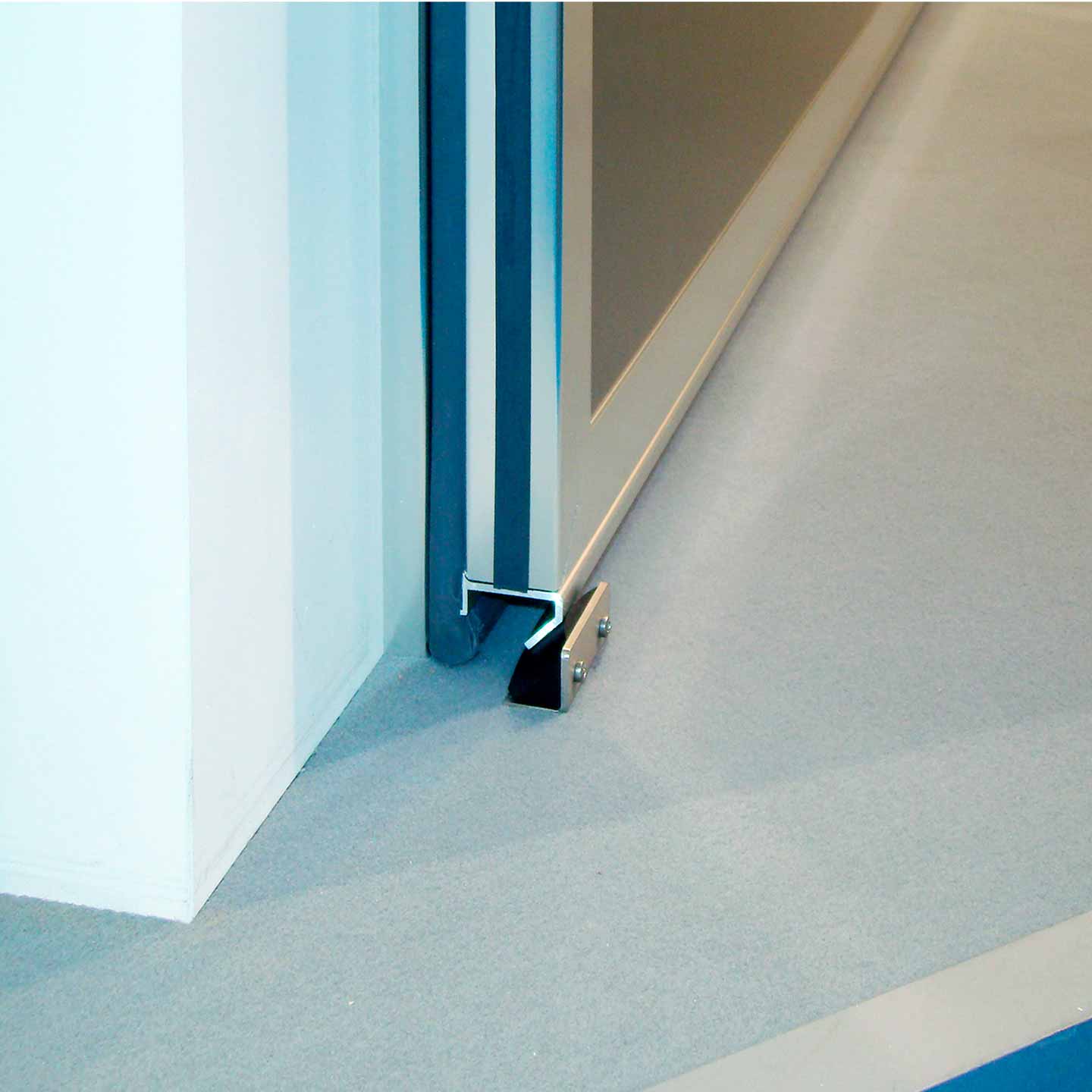

- Floor guides for precise closure and optimal tightness
The performance of the air-tight doors has been tested by certified testing laboratories and has air-tightness test reports according to NF EN 1026 standard.
- Test reports carried out by certified CSTB laboratory N°BV13-262 on a door equipped with an HDS panel, HPL filling with 600 x 400 mm window
The door is equipped with an HDS panel consisting of a rigid core covered with high-density laminated panels, robust and resistant to shocks and cleaning.
These coatings are available in several colors. Other coatings and materials can be used according to requirements (sound insulation, transparency, humid environment…).
In the anti-x version, a lead sheet is integrated into the filling and frame profiles, providing optimal protection against x-rays.
A window allows supervision of the room’s interior, also available in an anti-x version.
Hospital doors have 3 major objectives: :
- Ensure expected sanitary security with appropriate designs, materials, and control systems
- Guarantee staff safety and prevent unauthorized intrusions by controlling access
- Protect users and facilitate contactless and effortless movement
| Security Issues | Systems |
|---|---|
| Sanitary security |
|
| Preventing unauthorized intrusions |
|
| User protection |
|
Innovations and new technologies applied to automatic doors aim to offer smarter systems that adapt to different uses.
In hospital environments, various devices significantly improve daily use.
Double pedestrian/bed opening
